A Rare & Early Edison Pattern 'long-waisted Mary Anne' Generator

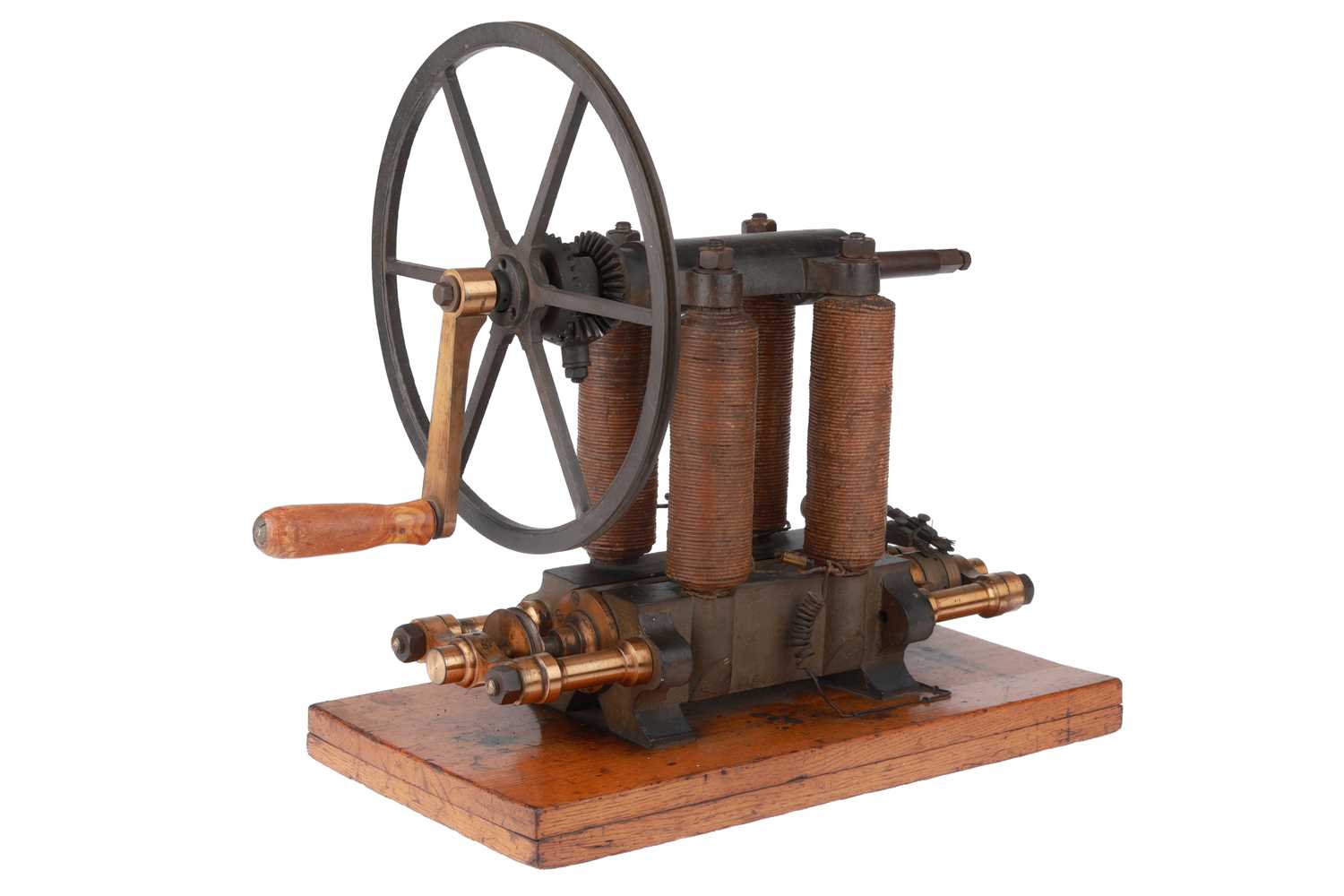

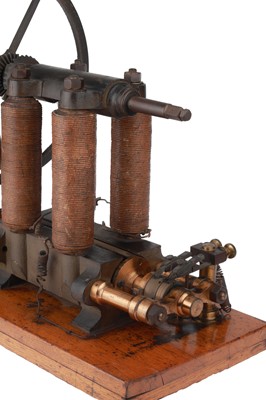

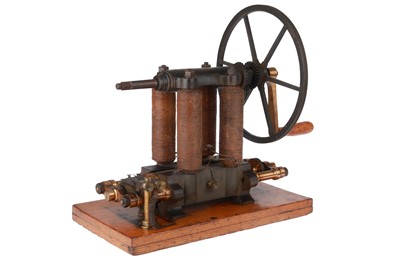

c.1880, unsigned Edison Pattern 'long-waisted Mary Anne' Generator, mounted on a French polished base baord with cast iron base raised on 4 feet, with heavy engineered lacquered brass bearing ends to the stator, with a drive pully to one end and a set of adjustable brushes to the other, with 4 narrow vertical cylinder poleswith cast iron top plate with intgeral drive shaft, with geared pully wheel and brass lacquered crank handle, base 54cm

The Edison Pattern “Long-Waisted Mary Anne” Dynamo Generator

An early form of high-efficiency direct current generator, as exhibited at the Crystal Palace, London, 1882* The “Long-Waisted Mary Anne” was one of the earliest efficient direct-current dynamos developed by Thomas A. Edison and his team at Menlo Park in the late 1870s. It formed a key part of Edison’s system for supplying electric current to his new incandescent lamps and represents one of the most recognisable stages in the development of commercial electric lighting.

Historical Background.
By 1878, Edison’s laboratory was working to design a practical electrical lighting system that could compete with gas illumination. To achieve this, a new type of generator was required—one capable of delivering a steady, low-voltage current suitable for multiple incandescent lamps. The resulting machine, completed around 1879, was tall and narrow in profile, earning it the nickname “Long-Waisted Mary Anne” among Edison’s staff. It was designed to produce direct current with improved efficiency and reduced internal resistance compared to earlier dynamos (Edison, n.d.). Contemporary accounts suggest that the “Mary Anne” achieved efficiencies approaching 90 per cent, compared with approximately 40 per cent for other machines of the time (Priory LSST, 2019). This marked a significant advance in the practical generation of electrical power.

Design and Operation.
The dynamo used a 'bipolar magnetic field' arrangement, consisting of two large upright electromagnets and a drum-type armature mounted between them. When driven by a steam engine, or hand cranked in this example, the armature rotated within the magnetic field, generating a steady direct current which was collected via a commutator and copper brushes (Edison, n.d.). Edison’s design placed emphasis on low resistance in the armature windings and strong magnetic coupling, enabling the generator to power a substantial number of lamps from a relatively compact machine. Some of the larger early examples are recorded as running up to sixty 16-candlepower lamps simultaneously (Smithsonian Institution, n.d.).

Use at the Crystal Palace, 1882.
In 1882, twelve generators of this pattern were installed at the Crystal Palace Electrical Exhibition in Sydenham, London. They provided current for the large display of Edison’s incandescent lighting and electrical systems. This was the first major public demonstration of Edison’s complete lighting system in Britain and marked an important stage in the wider adoption of electric illumination (Science Museum Group, n.d.).

Legacy.
The “Long-Waisted Mary Anne” was soon succeeded by larger and more powerful designs, notably the “Jumbo” dynamos used at the Pearl Street power station in New York later the same year (ASME, 1980). Nevertheless, the “Mary Anne” remains as an important landmark in early electrical engineering, demonstrating the transition from laboratory experimentation to reliable commercial power generation. Surviving examples are now held in several major collections, including the 'Science Museum, London', and the 'Smithsonian Institution, where they are regarded as representative of Edison’s first successful lighting system.

References.

ASME (1980) Edison “Jumbo” Engine-Driven Dynamo. American Society of Mechanical Engineers. Available at: https://www.asme.org/getmedia/d8029e2f-2415-48f3-a707-cef2a9c77119/48.pdf (Accessed 10 Nov 2025).

Edison, T.A. (n.d.) Electric Generator, The Thomas Edison Papers. Rutgers University. Available at: https://edison.rutgers.edu/life-of-edison/inventions?catid=91&id=530%3Aelectric-generator&view=article (Accessed 10 Nov 2025).

Priory LSST (2019) Thomas Edison and the Electric Light. Available at: https://www.priorylsst.co.uk/_site/data/files/lsst/2019-20%20jo%20oldham/FFED905AE2319AE9134BDE43A22BC100.pdf (Accessed 10 Nov 2025).

Science Museum Group (n.d.) Early “Edison” Dynamo (Object CO36701). Available at: https://collection.sciencemuseumgroup.org.uk/objects/co36701/early-edison-dynamo (Accessed 10 Nov 2025).

Smithsonian Institution (n.d.) Edison Dynamo, c.1880. National Museum of American History. Available at: https://americanhistory.si.edu/collections/search/object/nmah_1287625 (Accessed 10 Nov 2025).
